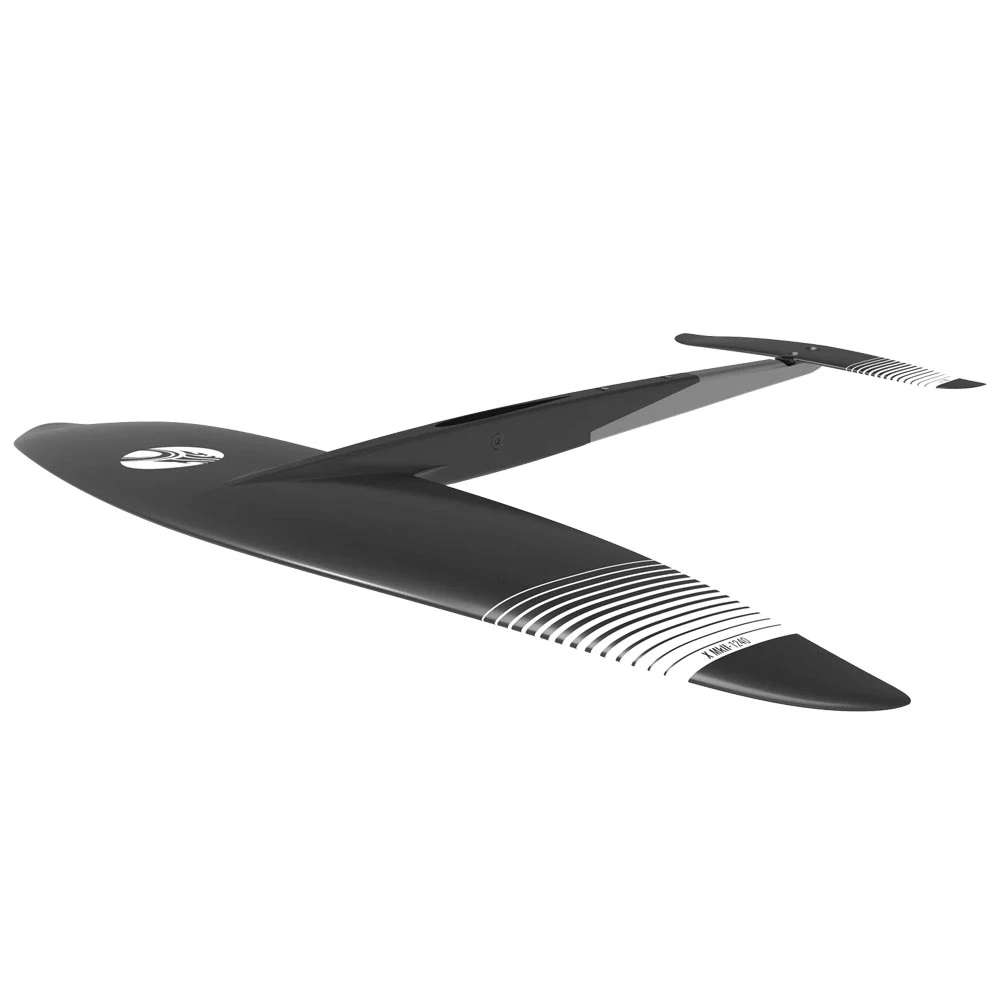

FUSION X-SERIES WINGS MKII

When we introduced the X-Series wings, we took Cabrinha’s foil program to a whole new level. Through working alongside SINTEF and the University of Norway where we were able to fully breakdown and simulate hydrofoil performance in the world’s largest cavitation tank. From this we have been able to further evolve the X-Series into the industry’s leading all round hydrofoil. Early lift, but with a high top speed has been achieved, and through refined tip shape and profile, you are able to break the tips free, but still be ready to carve into your next turn.

LOOSE AND AGILE

Through refined profiles, moderate aspect ratio and an all new wingtip shape, the X-Series MkII is the ultimate foil for maneuverability, no matter the board or sport you do.

ALL AROUND LEAN PROFILE

The all around lean profile still maintains the forgiving low-end that the X-Series is known for, but now boasts an increased speed range.

FEELING TIPSEY

The all new tip design allows you to be able to free the tips in a turn, but be confident that the foil will re-enter without cavitation. This is one specific area of research & testing undertaken at the SINTEF facility.

TAPERED FIT

The ergonomic tapered connection between the fuselage and mast provides the ultimate in rigidity, while still being easy to assemble and disassemble.

TORSIONAL STIFFNESS

Through the use of a PMI core and the layered Pre Preg carbon sheets, the X-Series MkII sets a new benchmark for hydrofoil torsional stiffness.

MEDIUM AR

The medium aspect ratio design allows for early lift and a stable forgiving ride.

FUSION V-SERIES TAIL STABILIZERS

One of the biggest effects on hydrofoil performance comes from the stabilizers. In a sport that is so diverse in its attributes and styles of riding, you need to have the right product to help you get the maximum performance from your system. Introducing the new V-Series Stabilisers. V represents versatility, and through the modular Fusion system, you are able to custom tailor your ride. Add a V-Series Stabiliser to any of the Cabrinha Fusion foils and get ready for the next step in performance & usability.

LOOSE AND AGILE

Through refined profiles, moderate aspect ratio and an all new wingtip shape, the V-Series are the ultimate stabilizers for maneuverability, no matter the board or sport you do or which Fusion front wing you ride.

ULTRA LEAN PROFILE

The all new ultra lean profile on the V series blends the perfect balance between stability and maneuverability, while also increases the speed range.

TIP DESIGN

The newly designed and engineered tip shape allows for greater control and maneuverability at all angles of attack. This is one specific area of research & testing undertaken at the SINTEF facility.

VERSATILITY

The new shape allows for use on any Fusion shape and along with the fuselage lengths can open up new levels of performance on your Fusion foils.

TORSIONAL STIFFNESS

Through the use of a PMI core and the layered Pre Preg carbon sheets, the V-Series stabilsers set a new benchmark for hydrofoil torsional stiffness.

MEDIUM AR

The medium aspect ratio design allows for early lift and a stable forgiving ride.

FUSION ALLOY FUSELAGE MKII HOLLOW

One of the smallest but most critical parts of the foil system is the Fuselage. Often overlooked, the Fuselage allows you to truly custom tune your setup based not only on the conditions but also the sport you do.
The new Hollow fuselage maintains the same stiffness of the previous version, but in a lightweight structure, giving you increased range and earlier take off and control.

HOLLOW FUSELAGE

For lightweight performance.

INSULATED MOUNTING SURFACES

For improved durability and longevity.
