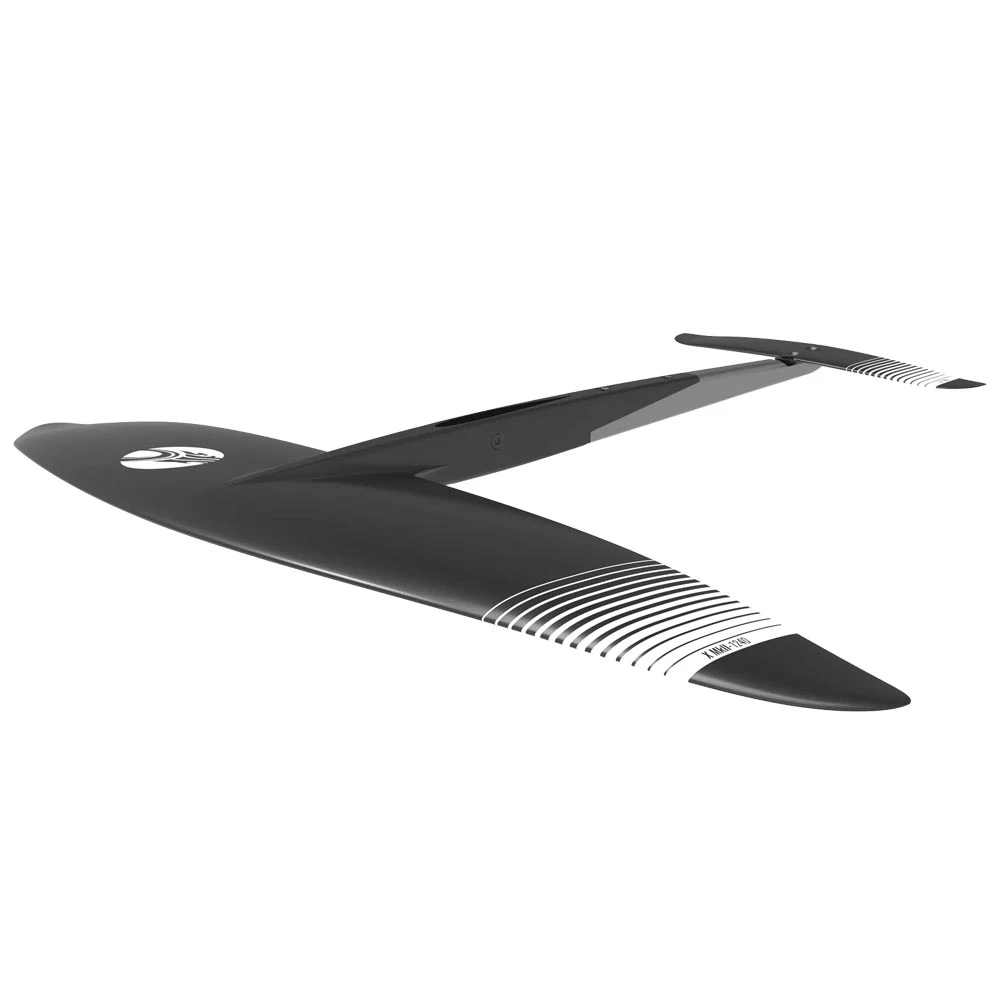

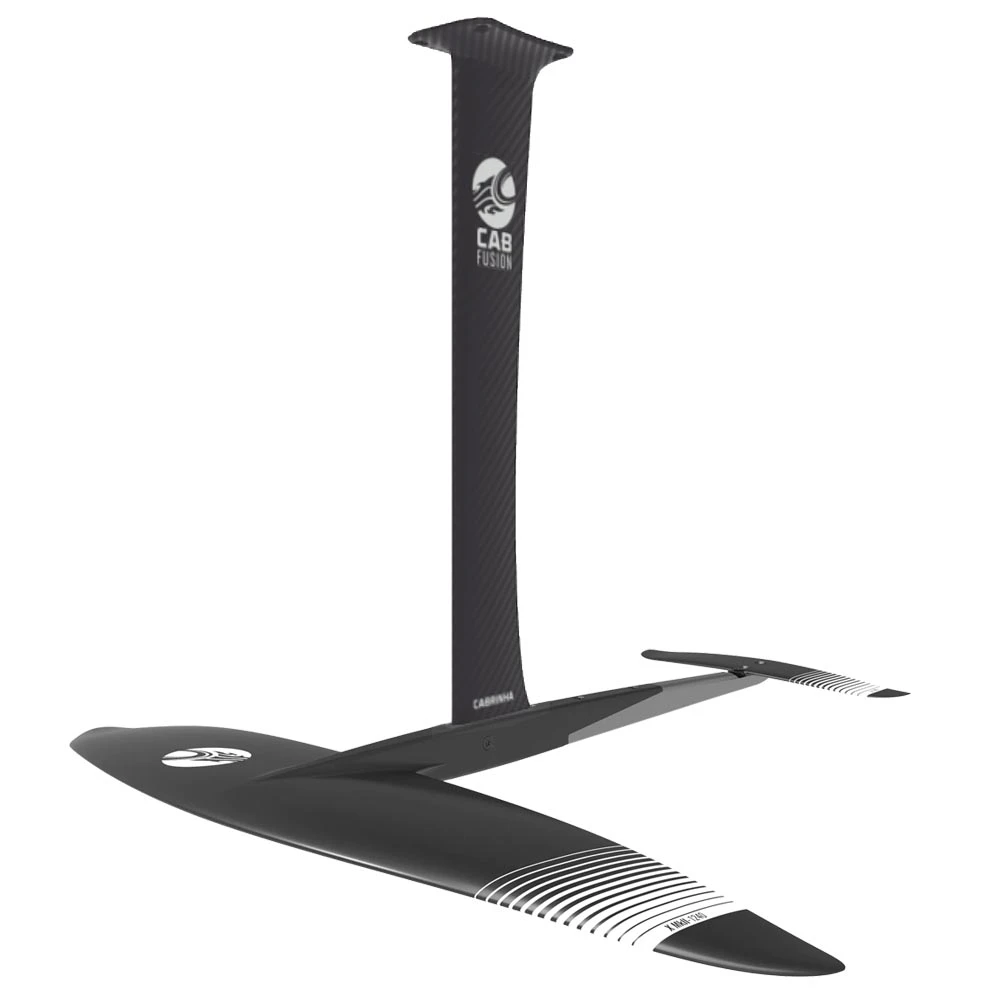

FUSION X-SERIES WINGS MKII

When we introduced the X-Series wings, we took Cabrinha’s foil program to a whole new level. Through working alongside SINTEF and the University of Norway where we were able to fully breakdown and simulate hydrofoil performance in the world’s largest cavitation tank. From this we have been able to further evolve the X-Series into the industry’s leading all round hydrofoil. Early lift, but with a high top speed has been achieved, and through refined tip shape and profile, you are able to break the tips free, but still be ready to carve into your next turn.

LOOSE AND AGILE

Through refined profiles, moderate aspect ratio and an all new wingtip shape, the X-Series MkII is the ultimate foil for maneuverability, no matter the board or sport you do.

ALL AROUND LEAN PROFILE

The all around lean profile still maintains the forgiving low-end that the X-Series is known for, but now boasts an increased speed range.

FEELING TIPSEY

The all new tip design allows you to be able to free the tips in a turn, but be confident that the foil will re-enter without cavitation. This is one specific area of research & testing undertaken at the SINTEF facility.

TAPERED FIT

The ergonomic tapered connection between the fuselage and mast provides the ultimate in rigidity, while still being easy to assemble and disassemble.

TORSIONAL STIFFNESS

Through the use of a PMI core and the layered Pre Preg carbon sheets, the X-Series MkII sets a new benchmark for hydrofoil torsional stiffness.

MEDIUM AR

The medium aspect ratio design allows for early lift and a stable forgiving ride.

FUSION V-SERIES TAIL STABILIZERS

One of the biggest effects on hydrofoil performance comes from the stabilizers. In a sport that is so diverse in its attributes and styles of riding, you need to have the right product to help you get the maximum performance from your system. Introducing the new V-Series Stabilisers. V represents versatility, and through the modular Fusion system, you are able to custom tailor your ride. Add a V-Series Stabiliser to any of the Cabrinha Fusion foils and get ready for the next step in performance & usability.

LOOSE AND AGILE

Through refined profiles, moderate aspect ratio and an all new wingtip shape, the V-Series are the ultimate stabilizers for maneuverability, no matter the board or sport you do or which Fusion front wing you ride.

ULTRA LEAN PROFILE

The all new ultra lean profile on the V series blends the perfect balance between stability and maneuverability, while also increases the speed range.

TIP DESIGN

The newly designed and engineered tip shape allows for greater control and maneuverability at all angles of attack. This is one specific area of research & testing undertaken at the SINTEF facility.

VERSATILITY

The new shape allows for use on any Fusion shape and along with the fuselage lengths can open up new levels of performance on your Fusion foils.

TORSIONAL STIFFNESS

Through the use of a PMI core and the layered Pre Preg carbon sheets, the V-Series stabilsers set a new benchmark for hydrofoil torsional stiffness.

MEDIUM AR

The medium aspect ratio design allows for early lift and a stable forgiving ride.

FUSION ALLOY FUSELAGE MKII HOLLOW

One of the smallest but most critical parts of the foil system is the Fuselage. Often overlooked, the Fuselage allows you to truly custom tune your setup based not only on the conditions but also the sport you do.
The new Hollow fuselage maintains the same stiffness of the previous version, but in a lightweight structure, giving you increased range and earlier take off and control.

HOLLOW FUSELAGE

For lightweight performance.

INSULATED MOUNTING SURFACES

For improved durability and longevity.

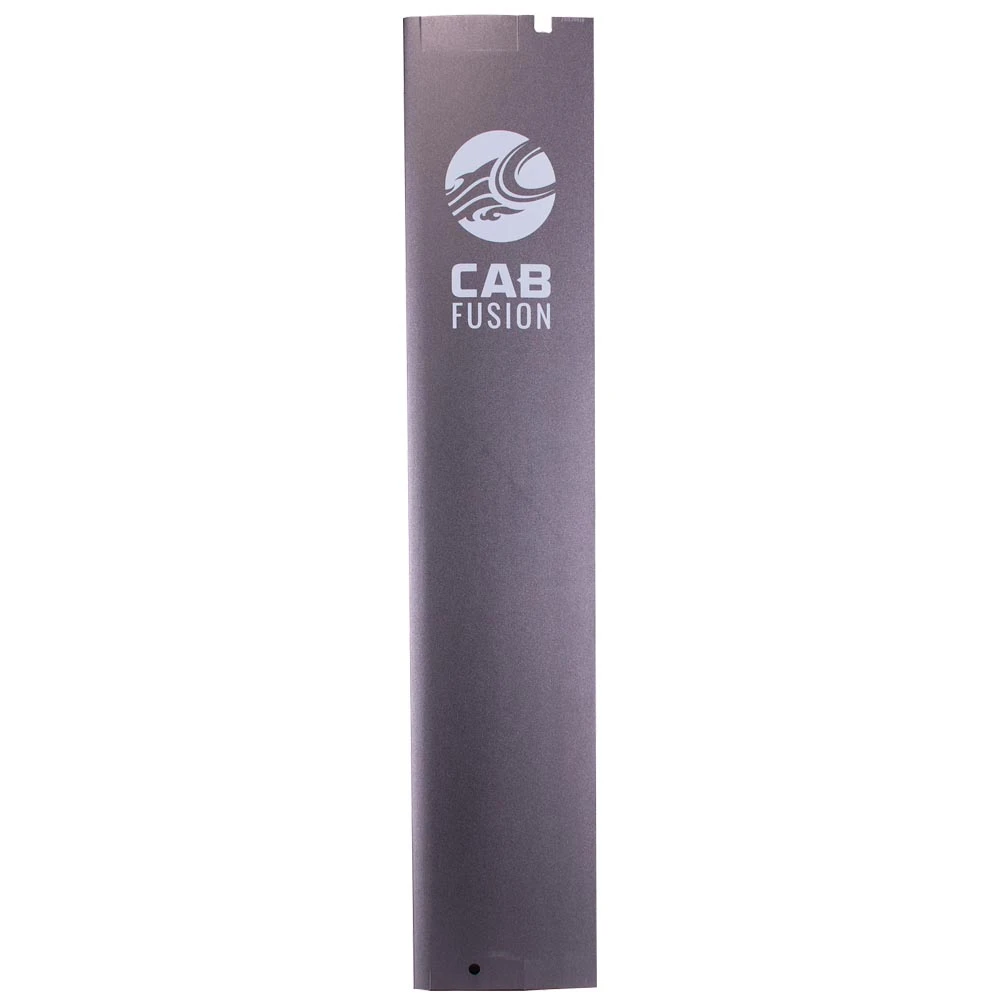

FUSION ALLOY MAST MKII

aluminum that result in an incredibly rigid & hydrodynamic structure. Helicoil inserts eliminate salt water corrosion around the screw connection points. It seamlessly integrates into all 9cm industry standard foil boxes.

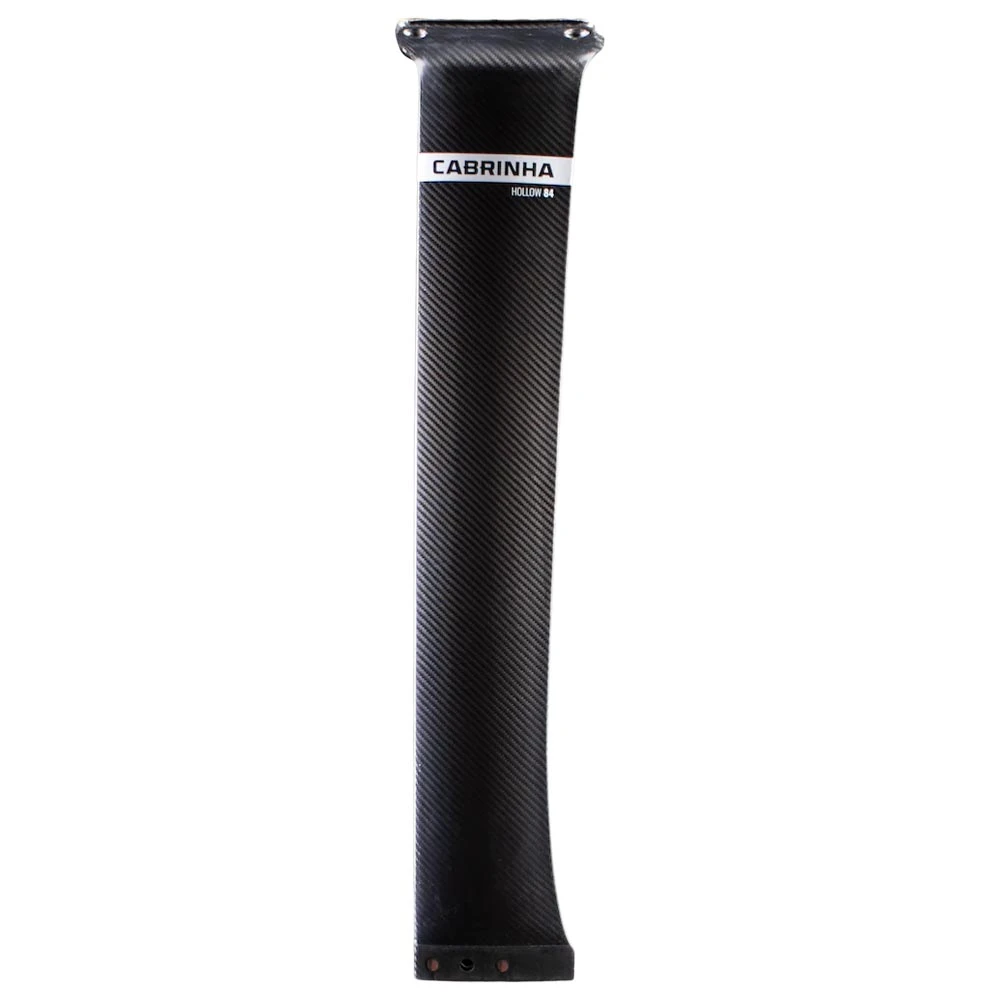

FUSION CARBON HOLLOW MAST

The all-new Hollow Mast system is yet another example of the state of the art foil program from Cab Design Works. It nods to the critical & complete design approach of the team to view every foil component individually with a view to improve stiffness across the entire platform. It implements a bladder molded construction with strategic layering of carbon as far to the outside as possible. This culminates in our stiffest ever mast to front wing connection. This reduction in flex eliminates any lag in the turn and transfers energy while pumping seamlessly through to the front wing.

FORGED MAST PLATE MKII

The Fusion Alloy Top Plate is constructed from extruded aircraft grade aluminium that result in an incredibly rigid mast to board socket connection. It can be used with any Cab Fusion alloy mast.

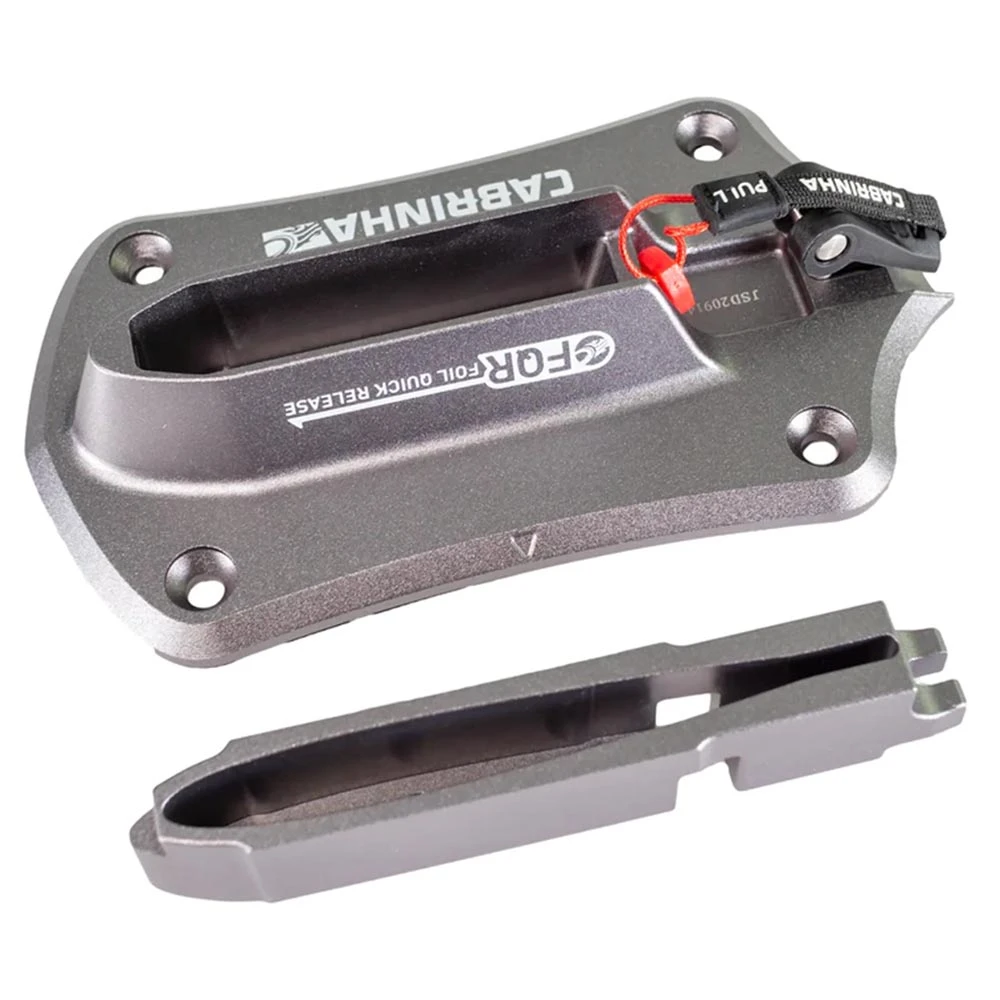

FUSION FQR PLATE

The Patent pending Cabrinha Foil Quick Release is an innovative new tool-less mast plate that allows you to detach your foil mast from the board in seconds. The tapered engagement provides a press fit that will ensure a solid connection without any movement. Gone are the days of trying to tetris pack your foil boards to and from the beach, simply pull the release lever and the mast detaches. The FQR release attaches to all industry standard 9cm foil board track.
